FEATURES
- German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
- 8'' Woofer (Multi-Layer Mineral)
- 3.5" DCH Midrange Driver
- Total Peak Amp. Power: 340 W
- Frequency Response @ -6 dB: 31 Hz – 45 kHz
- Max. peak SPL per speaker at 1 m: 105 dB SPL
DESCRIPTION

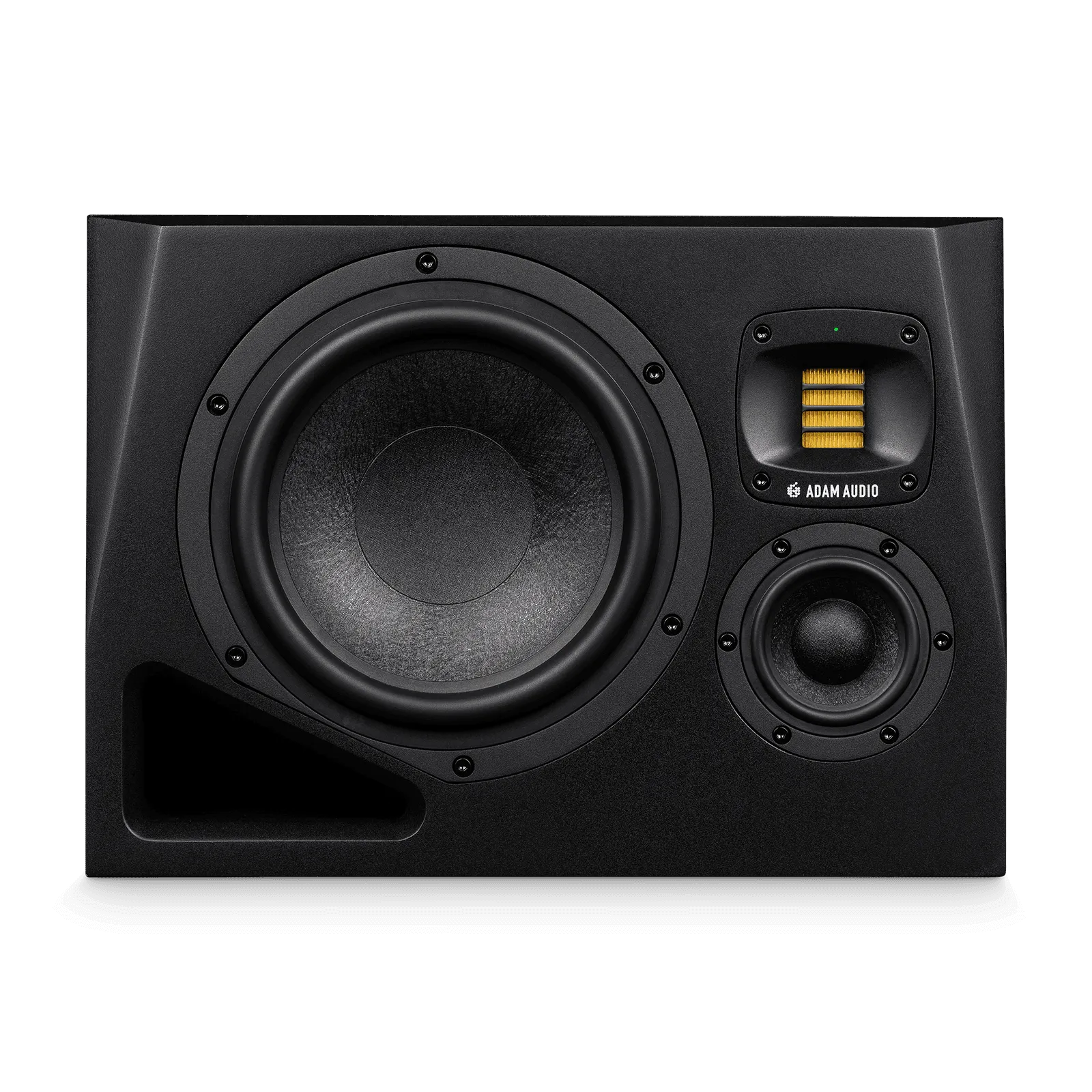

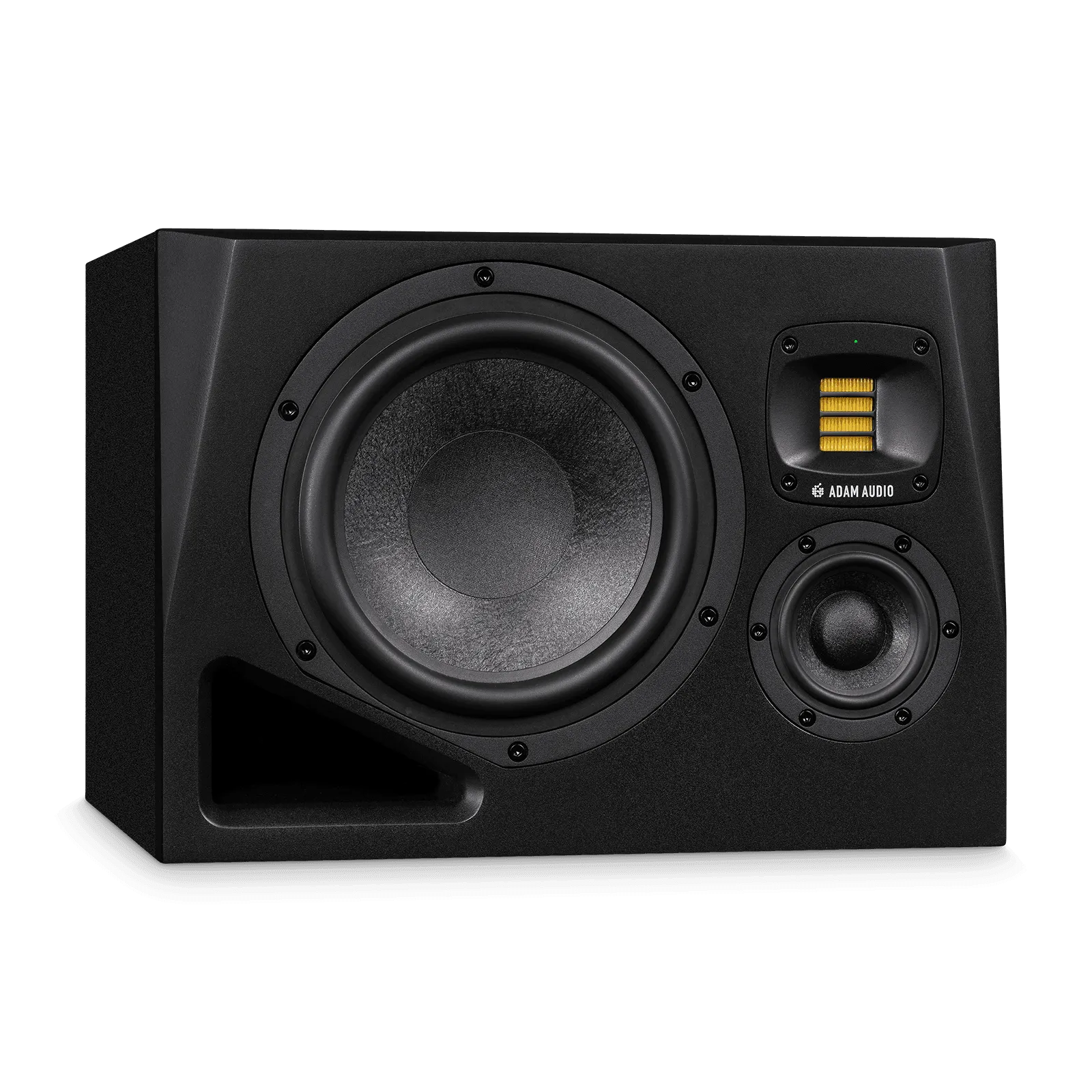

The A8H incorporates an 8-inch resonant Multi-Layer Mineral (MLM) fiber woofer, innovative midrange driver, and handmade precision X-ART tweeter, which together produce an ultra-wide frequency response.
Like the other members of the A Series family, the A8H gives you tremendous flexibility for fine-tuning the sound through rotatable HPS waveguide technology and onboard DSP. At home across a full range of audio applications in mid- to full-sized spaces, the A8H is the right choice when you’re looking for the most detailed representation of your audio.
The A8H is available in a left and right version.
SPECIFICATION
| Display | Front panel multi-colour LED |
| Cabinet Design | Single front ported |
| Cabinet Material | Vinyl wrapped MDF and painted MDF front panel |
| Mounting options | Threaded inserts on the bottom of the cabinet (4 x M8) |
| Power consumption (max, idle, sleep) | 220 W, 15 W, 3.5 W |
| AC Input Voltage | 100 – 240 V, 50/60 Hz |
| Power Rating | 500 W max. |
| Operating Conditions | -10° C to 40° C ( 14° F to 104° F); <75 % RH, non-condensing |
| Weight | 13.6 kg (30 lb) |
| Dimensions (Height x Width x Depth) | 274 mm x 382 mm x 329 mm (10 3/4″ x 15″ x 13″) |
